12 Volt DC Driver
We offer 3 types of LED Drivers that come as standard with each LED Mirror.

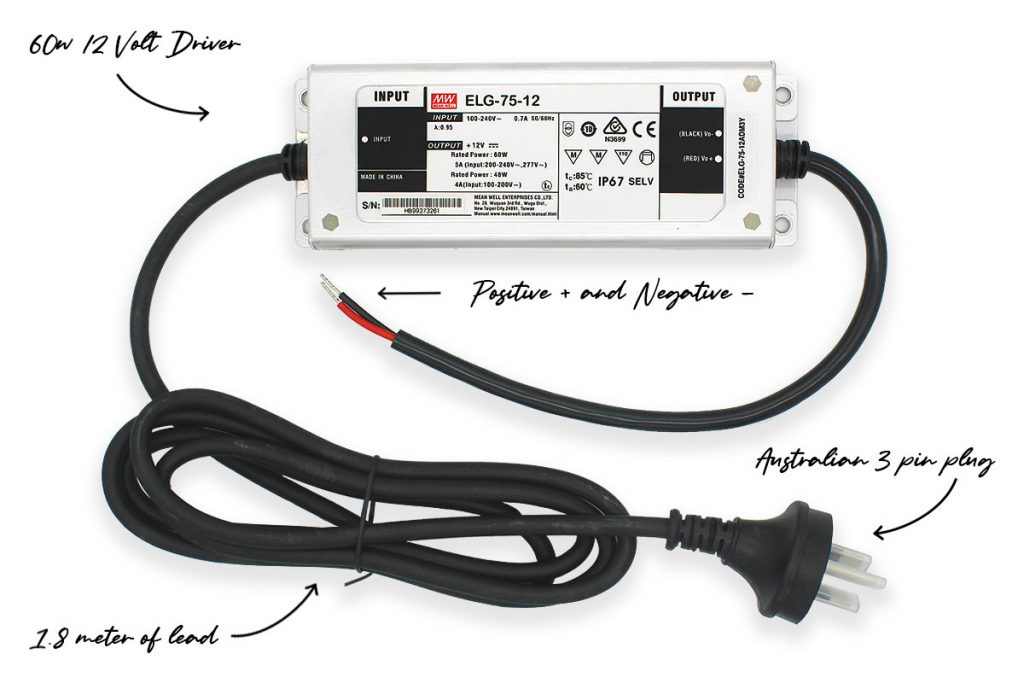

- ELG-75-12 (60w)
- ELG-150-12 (120w)
- HLG-150H-12 (150w)
The type of LED Driver will be determined by the size and amount of LEDs that are installed in the LED Mirror and or the number of DeMista Pads.
If you require 24V LEDs and a 24V Driver, or a Dimmable Driver to work with 240v wall dimmers or if you need the LED Mirror to work with the DALI system please specify when ordering. We offer all types of Drivers to suit your needs.
A 12 Volt DC Driver powers the LED lights in all the Lighted Mirrors we offer. The LED lights we use have a low power input, they are powered at 12 Volts. The power out of the wall runs at a current of 240 Volts. The 240 volts from the wall run through our DC Driver down to 12 volts. This has huge advantages.
Safety – 12 volt is an incredibly safe and stable power supply.
Low cost – Having LED lights that run cool because of the low power they use saves you power which saves you money.

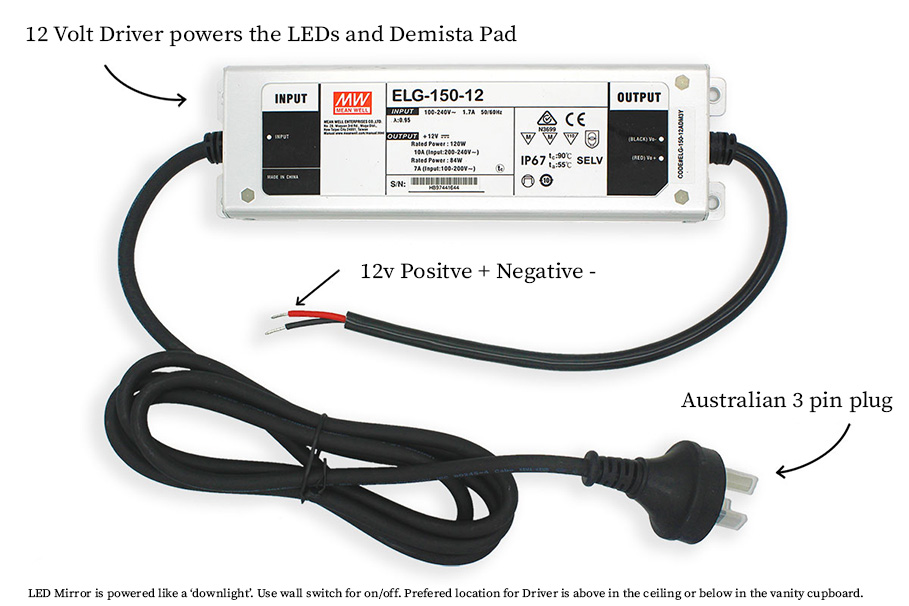

ELG-150 series
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with functional Ground
- Built-in active PFC function
- No-load/Standby power consumption <0.5W
- IP67/IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer;
- 3 in 1 dimming (dim-to-off); Smart dimer dimming; Dali; Auxiliary DC output (contact us for these options)
- Typical lifetime > 50,000 Hours
- 5 Years Warranty
Description ELG-150 series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. ELG – 150 operates from 100 ~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency of up to 91% with the fanless design, the entire series is able to operate for -40 ~ +90 case temperature under free air convection. The design of metal housing and IP67. IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG – 150 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.
Download the PDF Data Sheet for more information

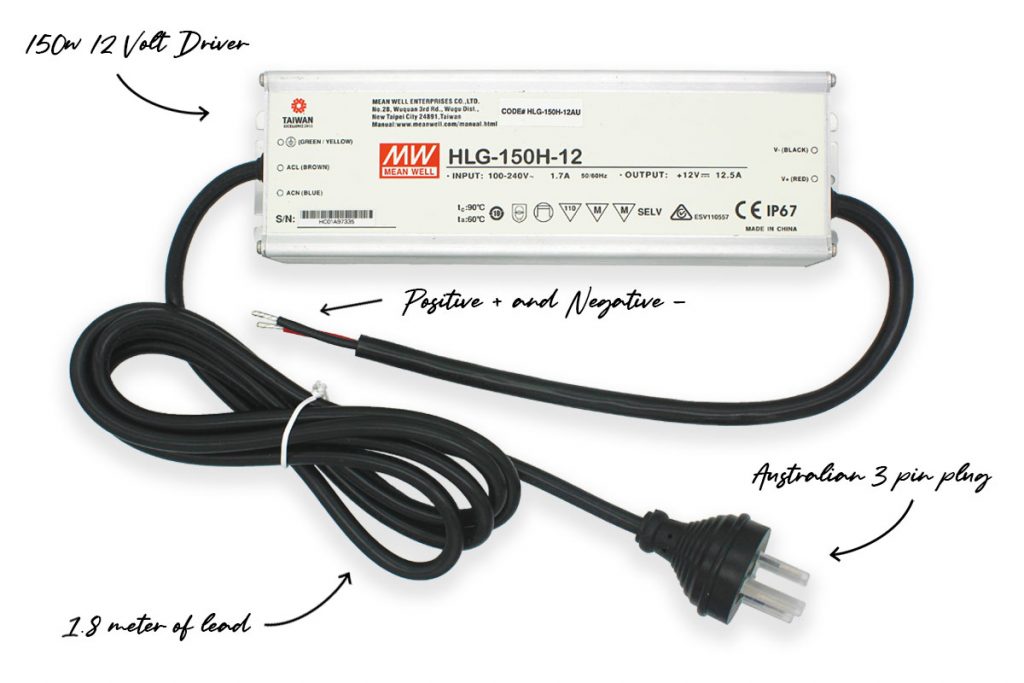

HLG-150H series
Features
- Constant Voltage + Constant Current mode output
- Metal housing design with class I design
- IP67/IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer;
- 3 in 1 dimming (dim-to-off); Smart dimer dimming; Dali; Auxiliary DC output (contact us for these options)
- Typical lifetime > 62,000 Hours
- 7 Years Warranty
HLG – 150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG – 150H operates from 90 ~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency of up to 94% with the fanless design, the entire series is able to operate for -40 ~ +90 case temperature under free air convection. The design of metal housing and IP67.IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG – 150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.
Download the PDF Data Sheet for more information
